Premium quality Italian product

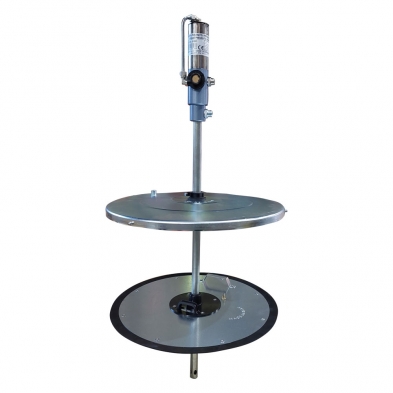

Pneumatic pumps for the transfer of grease or high viscosity oils at a constant pressure.
Suitable for 180kg drum application
Compression ratio 25:1
Kit complete with pump, follower plate, drum cover
| Kit Breakdown |
Part Number |
Specification |
| 25:1 Grease Pneumatic pump |
DO81883 |
• Feeding-Compressed Air: Min. 30 Max. 116 PSI
• Output pressure: 2,900 PSL
• Flow rate: 4,000g/min
• Air connection: F 1/4"BSP
• Fluid connection: M 1/2"BSP
• Pumping assy length: 750mm
• Pumping assy diameter: 28mm
• Sizes (mm): 95 x 95 x 1005 |
| Grease Drum Cover |
DO80580 |
• Drum cover keeps dust and impurities from contamining the grease
• Keeps the pump in the vertical position for optimum operation
• Lightweight and easy to install
• Suitable for 180kg drum application |
| Grease Follower Plate |
DO80684 |
• The follower plate is indispensable when using heavy grease, it is pulled toward the bottom of the drum by the vacuum that is created by the pump
• Lightweight and easy to install
• Suitable for 180kg drum application |
