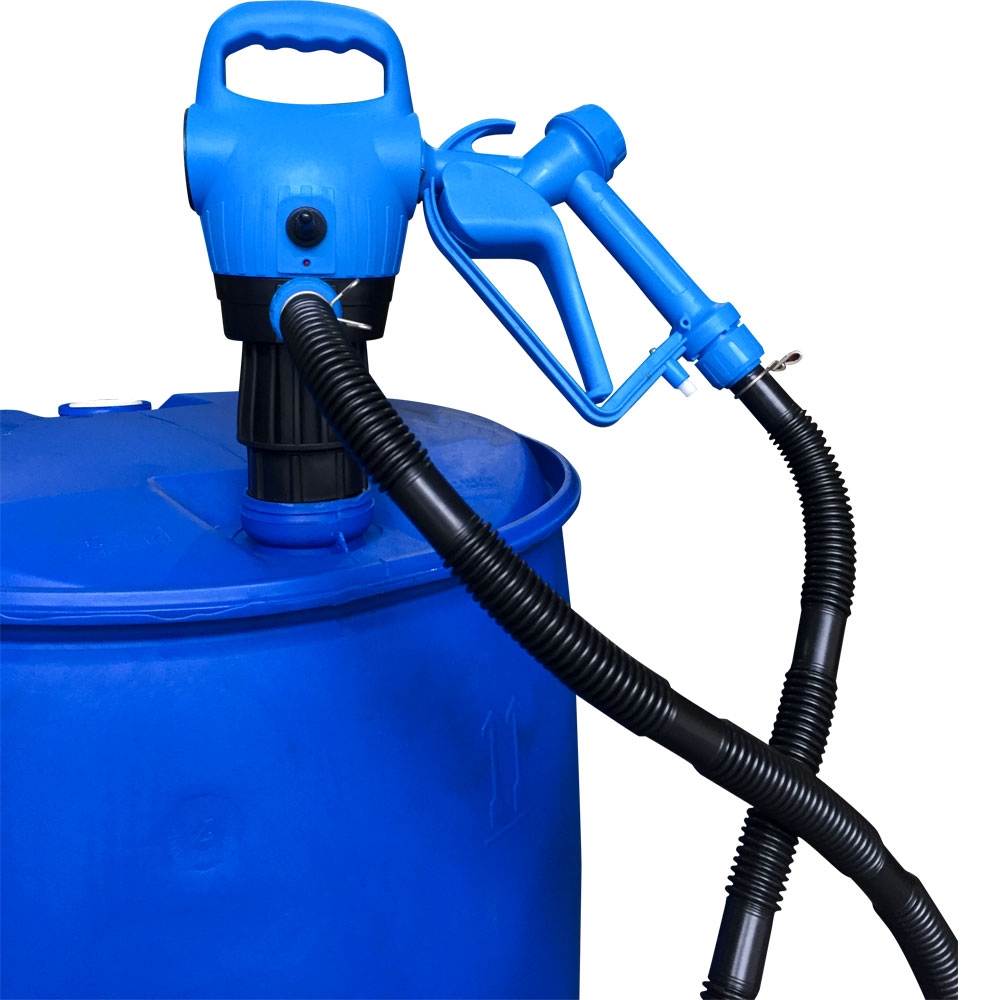

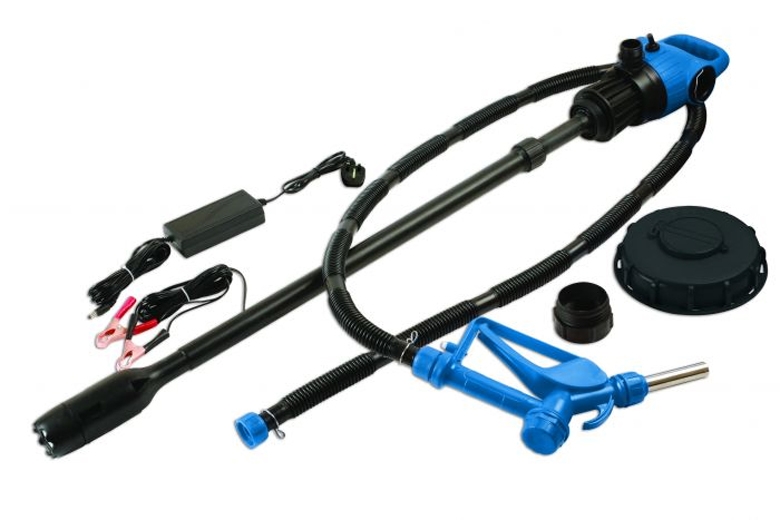

Urea/Def 240V Barrel Pump Kit

Model: UDDP20K

  • Wetted component: Viton, Stainless steel PE, PP
  • Used for UREA/DEF, antifreeze, detergents, pesticides, herbicides, urea and weak acid/base chemicals
  • Motor: 12 V, 30 W
  • Duty cycle: 15 minutes/15 minutes off
  • With 12 V DC battery cable and AC to DC adaptor
  • Flow rate: 19 LPM/5GPM
  • Telescopic suction tube length: 850 mm to 1245 mm
  • Built-in 2” BSP male thread for 1000 litre IBC tank
  • With 2” BSP female to mauser 70x6 mm adaptor for 205 litre drum
  • With 2” BSP female to mauser 56x4 mm adaptor for 205 litre drum
  • With 2 m deliver PVC hose and manual dispensing nozzle
