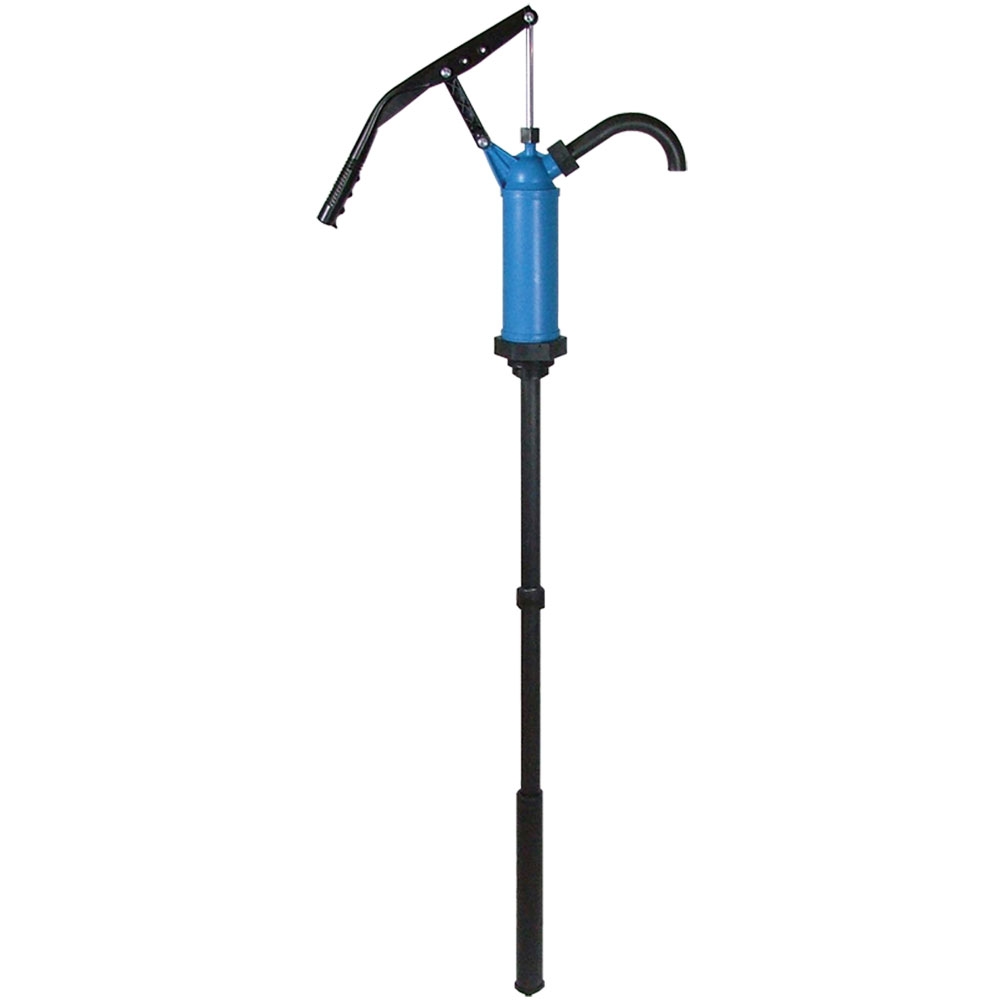

205 Litre Multi Purpose Pumps

  • Approximately 4 strokes per litre
  • Lever action
  • Lightweight and economical
  • Telescopic suction tube suitable for 60 and 205 litre drums
  • Please see specification below for detailed product material

Suitable for UREA/DEF - DJPPS200LP

Available Models:
DJPP200LP
DJPPS200LP
DJTS200LP

Specifications

Specifications


DJPP200LP

  • Pump body material: Polypropylene
  • Wetted material: Polypropylene, Viton, Plated steel
  • Piston material: Polypropylene
  • Max viscosity: 1500 SSU
  • Inlet size: 1"
  • Outlet size: 7/8"
  • Discharge tube length: 7-3/4"
  • Suction tube length: 36"
  • Overall length: 52"
  • Bung adapter: 2" & 1-1/2"
  • Max temperature: 60°C
  • Please check chemical compatibility chart for suitable fluid & chemical



DJPPS200LP

  • Pump body material: Polypropylene
  • Wetted material: Polypropylene, Viton, 304 Stainless Steel
  • Piston material: Polypropylene
  • Max viscosity: 1500 SSU
  • Inlet size: 1"
  • Outlet size: 7/8"
  • Discharge tube length: 7-3/4"
  • Suction tube length: 36"
  • Overall length: 52"
  • Bung adapter: 2" & 1-1/2"
  • Max temperature: 60°C
  • Please check chemical compatibility chart for suitable fluid & chemical



DJRST200LP

  • Pump body material: PPS
  • Spout: PP
  • Piston Rod Seal: PTFE
  • Piston Rod: 316SS
  • Valve Plate: 316SS
  • Valve Base: PTFE
  • Rod Plate: PTFE
  • Valve Nut: 316SS
  • Foot Valve Seal: PTFE
  • Base Plate: PTFE
  • Base: PPS
  • Tube: PPS
  • Tube Seal: PTFE
  • O Ring: PTFE
  • Valve: 316SS
  • Please check chemical compatibility chart for suitable fluid & chemical



DJTS200LP

  • Pump body material: PVDF
  • Spout: PVDF
  • Piston Rod Seal: PTFE
  • Piston Rod: 316SS
  • Valve Plate: 316SS
  • Valve Base: PTFE
  • Rod Plate: PTFE
  • Valve Nut: 316SS
  • Foot Valve Seal: PTFE
  • Base Plate: PTFE
  • Base: PTFE
  • Tube: PVDF
  • Tube Seal: PTFE
  • O Ring: PTFE
  • Valve: 316SS
  • Please check chemical compatibility chart for suitable fluid & chemical
