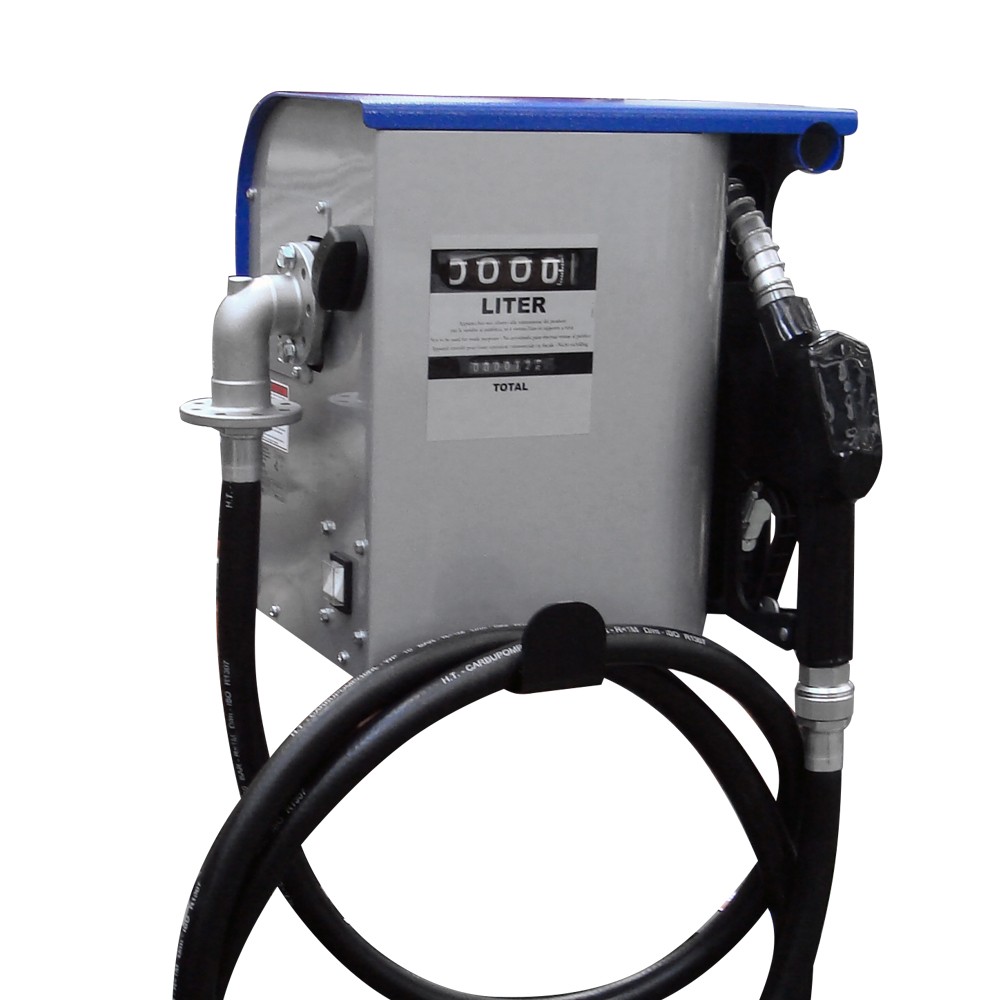

Cabinet Pumps 60lt/80lt/100lt (DAF3000 Series - 240 Volt) Zoom

Cabinet Pumps 60lt/80lt/100lt (DAF3000 Series - 240 Volt)


The diesel distribution system is Italian manufactured and the body fabricated entirely out of painted metal. The DAF3000 series includes a self-priming vane pump, mechanical meter, delivery hose and an automatic control valve with a swivel connector. It is also equipped with the ignition switch and mounting plate for the suction pipe. The nozzle port is built into the structure and the small size makes this distributor compact and reliable.
Italian Products

Available Models:
DAF3060
DAF3080
DAF3100

Specifications

Specifications

MODEL

DAF3060

DAF3080

DAF3100

Litres per min

60L

80L

 100L

Power Supply [V]

230

230

 230

Max Current [A]

2

2

 2

Working Cycle [min]

S2 - 30min

S2 - 30min

 S2 - 30min

Flow Rate Max [l/min]

60

80

 100

Inlet - Outlet [BSP-G]

 1" - 1 1" - 1 1" - 1
Suction Tube Length

480mm

 740mm 940mm

Cable [m]

 2 Metre - 3 Pin Plug 2 Metre - 3 Pin Plug 2 Metre - 3 Pin Plug

Allowed Fluids

 Diesel Diesel Diesel
Forbidden Fluids Gas, Gasoline, Alcohol, Water
Nozzle Automatic Automatic Automatic
Delivery hose [m, Ø, material, fittings]   4, 20, rubber, 1" x 3/4"
Motor protection rating IP55 IP55 IP55
