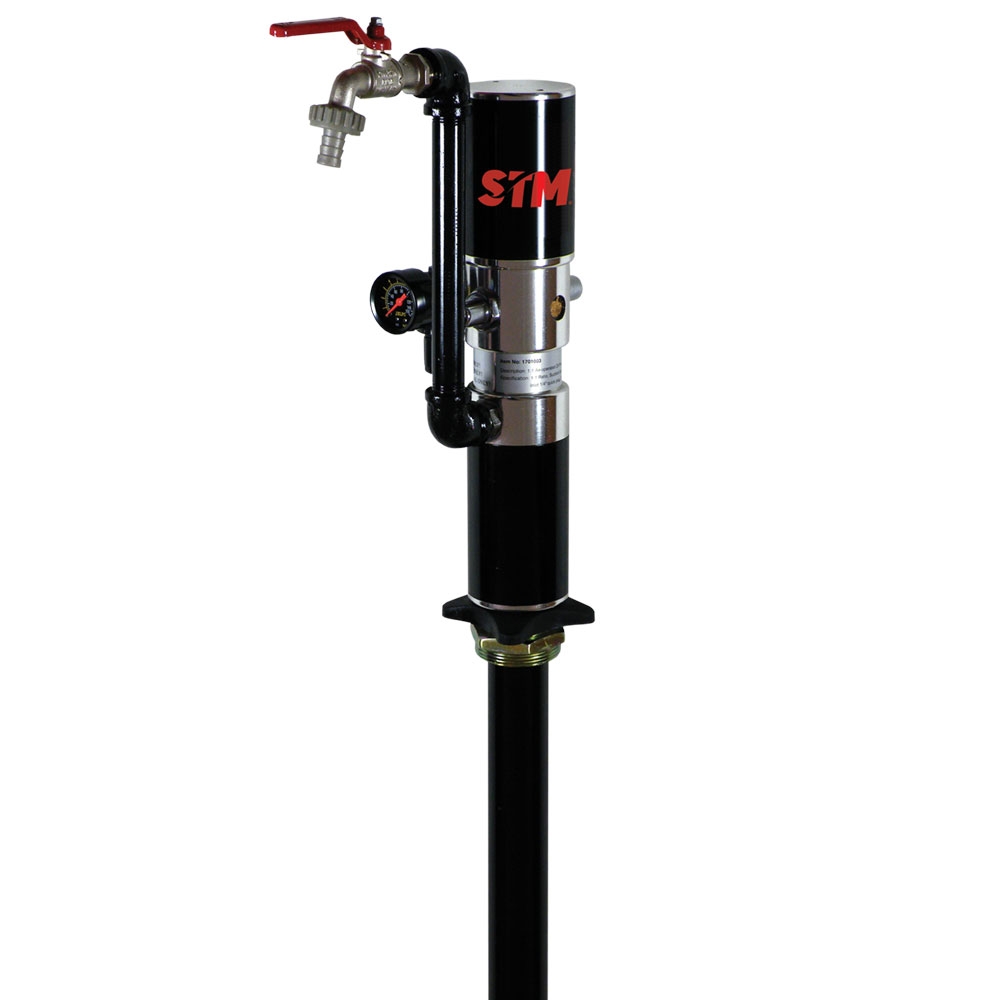

CK602 1:1 Air Operated Oil Pump Bar Zoom

1:1 Air Operated Oil Pump Bar

Model: CK602

  • A faster more efficient alternative for transferring oils from 205 litre drums
  • Foot valve and strainer fitted to suction pipe
  • Fitted with regulator, gauge and on/off air cock
  • ½" oil tap
  • Pumps 18 litres per minute
  • Ideal for filling oil jugs or bottles
  • Optional drip tray to support oil jug (DITI18980011)
  • Can also be optioned as wall mounted type, contact STM for details
  • Equipped with lubricator, which must be fitted, otherwise warranty will be void

Specifications

Specifications

MODEL

CK602

Drum application

205 Litre drum

Pressure ratio

1:1

Working pressure

20-115psi

Air consumption

@115psi 3.6 CFM

Max flow rate (per min)

18 litres

Suction tube diameter

42mm

Suction tube length

940mm

Air inlet connection

½" BSP Female

Oil outlet connection

½" BSP Male



KIT BREAKDOWN

1:1 Air operated oil pump

DITI1701003

Spigot

DITI602S

Regulator gauge

DITIAR2000
