3:1 Air Operated Oil Pumps

  • Suitable for pumping through medium sized hose reel systems
  • Air operated for integration into transfer system
  • Long pumping life, easy to operate and maintain
  • Smart design with fewer parts for less pump wear
  • Differential air motor ensures smooth pumping
  • Typical fluids handled include motor oil, synthetic oil, hydraulic oil, ATF and coolant
  • Suitable for oil up to 150 SAE
  • Supplied with adjustable 2" bung adaptor
  • Also available: 3:1 ratio air operated pump (long series) that dispenses at 28 LPM (DITI1701036)
  • Equipped with lubricator, which must be fitted, otherwise warranty will be void

Also Available: 1:1 Air Operated Oil Pumps & 5:1 Air Operated Oil Pumps

Available Models:
DITI1701031

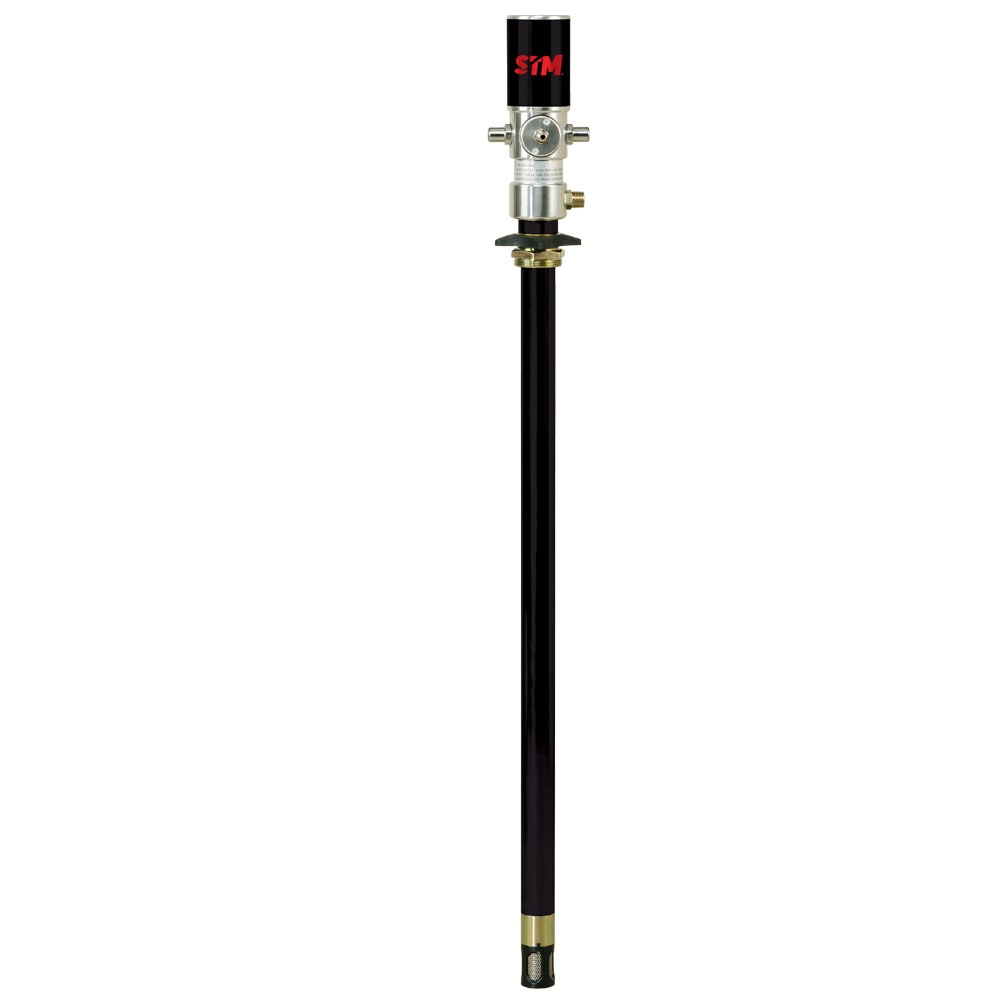

DITI1701033
DITI1701034
DITI1701036

Specifications

Specifications

MODEL

DITI1701031

DITI1701033

DITI1701034                        DITI1701036

Drum application

Wall mounted

205 Litre

Stub 205 litre drum

Pressure ratio

3:1

3:1

3:1 3:1

Working pressure

20 - 115psi

20 - 115psi

70 - 115psi 70 - 115psi

Air consumption

@115psi 3.9 CFM

@115psi 3.9 CFM

@115psi 5.0 CFM @115psi 5.0 CFM

Max free flow rate

12 LPM

12 LPM

28 LPM 28 litres

Suction tube diameter/ thread

42mm/ 1” BSP Female

42mm/ 1” BSP Female

42mm/ 1” BSP Female 42mm/ 1” BSP Female

Suction tube length

270mm

940mm

270mm 940mm

Air inlet connection

¼" BSP Female

 ¼" BSP Female

 ¼" BSP Female  ¼" BSP Female

Oil outlet connection

½" BSP Male

 ½" BSP Male


3/4" BSP Male 3/4" BSP Male
