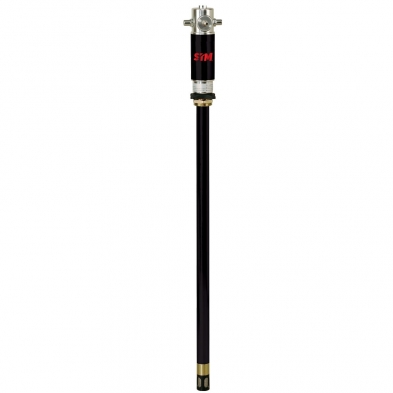

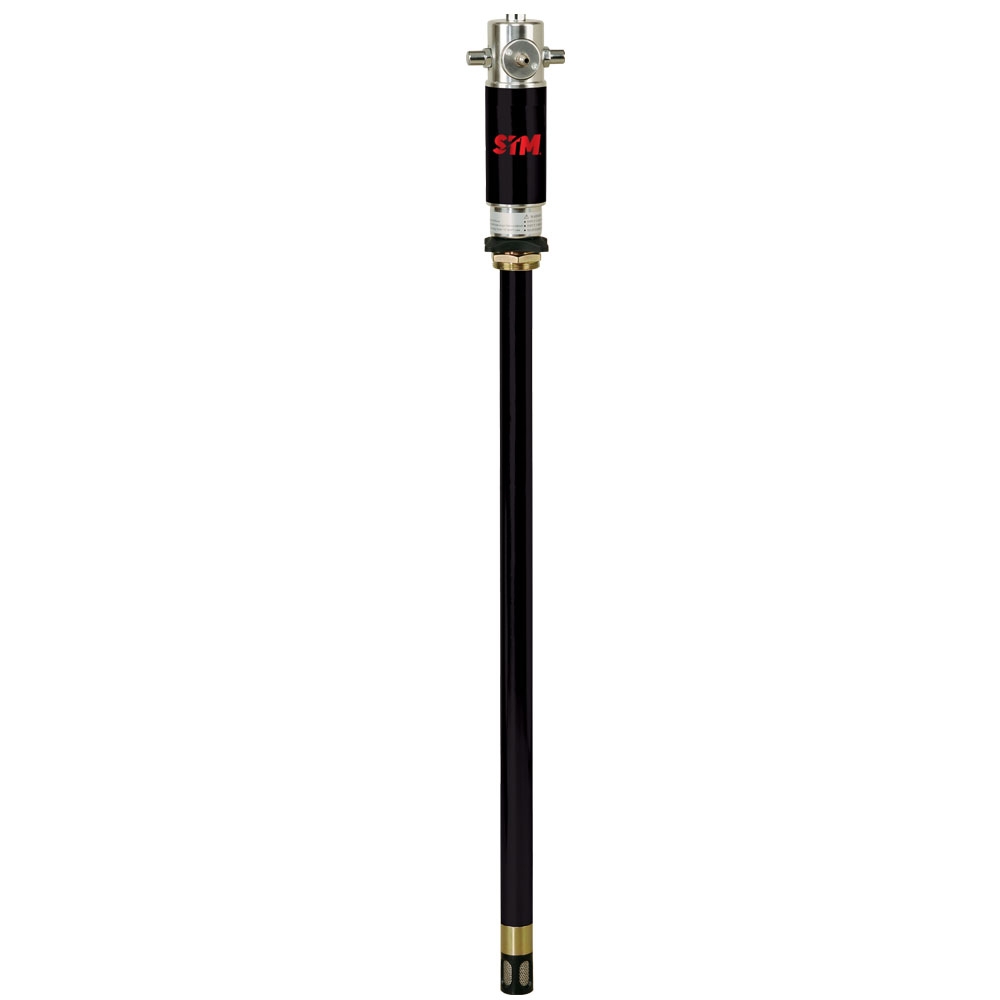

5:1 Air Operated Oil Pumps

  • Suitable for pumping through medium sized hose reel systems when 2 or more oil dispensing nozzles are required
  • Air operated for integration into transfer system
  • Long pumping life, easy to operate and maintain
  • Smart design with fewer parts for less pump wear
  • Differential air motor ensures smooth pumping
  • Typical fluids handled include motor oil, synthetic oil, hydraulic oil, ATF and coolant
  • Suitable for oil up to 240 SAE
  • Supplied with adjustable 2" bung adaptor
  • Equipped with lubricator, which must be fitted, otherwise warranty will be void

Also Available:

1:1 Air Operated Oil Pump & 3:1 Air Operated Oil Pump

Available Models:
DITI1701051
DITI1701053
DITI1701054
DITI1701056

Specifications

Specifications

MODEL

DITI1701051 DITI1701053 DITI1701054 DITI1701056

Drum application

Stub 205 litre drum Stub 205 litre drum

Pressure ratio

5:1 5:1 5:1 5:1

Working pressure

70 - 115psi 70 - 115psi 70 - 115psi 70 - 115psi

Air consumption

@115psi 4.5 CFM @115psi 4.5 CFM @115psi 4.5 CFM @115psi 4.5 CFM

Max free flow rate

14 LPM 14 LPM 28 LPM 28 LPM

Suction tube diameter/ thread

42mm/ 1” BSP Female 42mm/ 1” BSP Female 42mm/ 1” BSP Female 42mm/ 1” BSP Female

Suction tube length

270mm 940mm 270mm 940mm

Air inlet connection

 ¼" BSP Female  ¼" BSP Female  ¼" BSP Female  ¼" BSP Female

Oil outlet connection

 ½" BSP Male  ½" BSP Male  3/4" BSP Male  3/4" BSP Male
