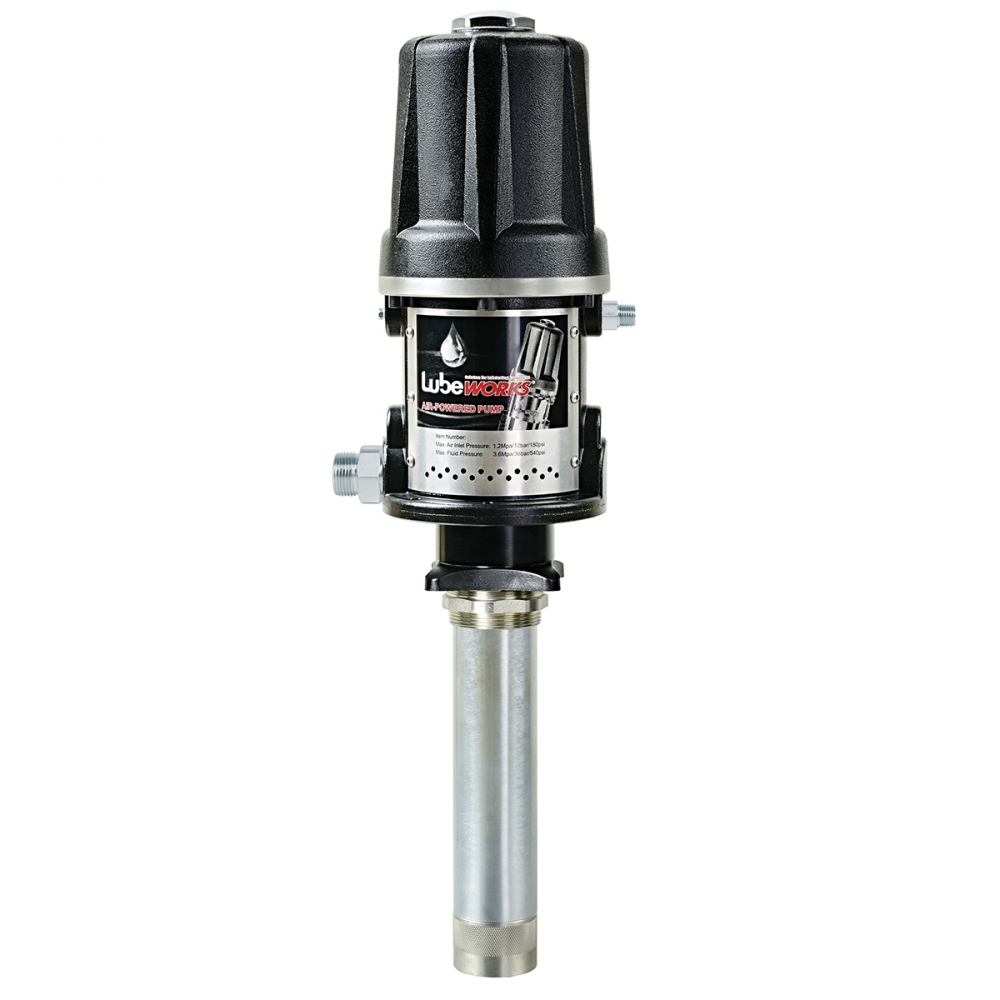

5:1 High Volume Air Operated Oil Pump

Perfect for oil transfer in high volumes through 2 or more hose reels over long distances
High flow rate of 40 LPM
Delivers up to 870psi
Heavy duty construction
Suitable for motor oil, synthetic oil, hydraulic oil, gear oil, ATF and coolant
Optional suction tubes available to suit 205 litre drums or 1000 litre IBC tanks
Equipped with lubricator, which must be fitted, otherwise warranty will be void

Specifications

MODEL	DITI 17130501
Drum application	Wall mounted
Pressure ratio	5:1
Working pressure	70 - 180psi
Air consumption	@115psi 21.6 CFM
Max free flow rate	40 LPM
Suction tube diameter/ thread	54mm
Suction tube length	270mm
Air inlet connection	1/4" BSP Female
Oil outlet connection	¾" BSP Male
