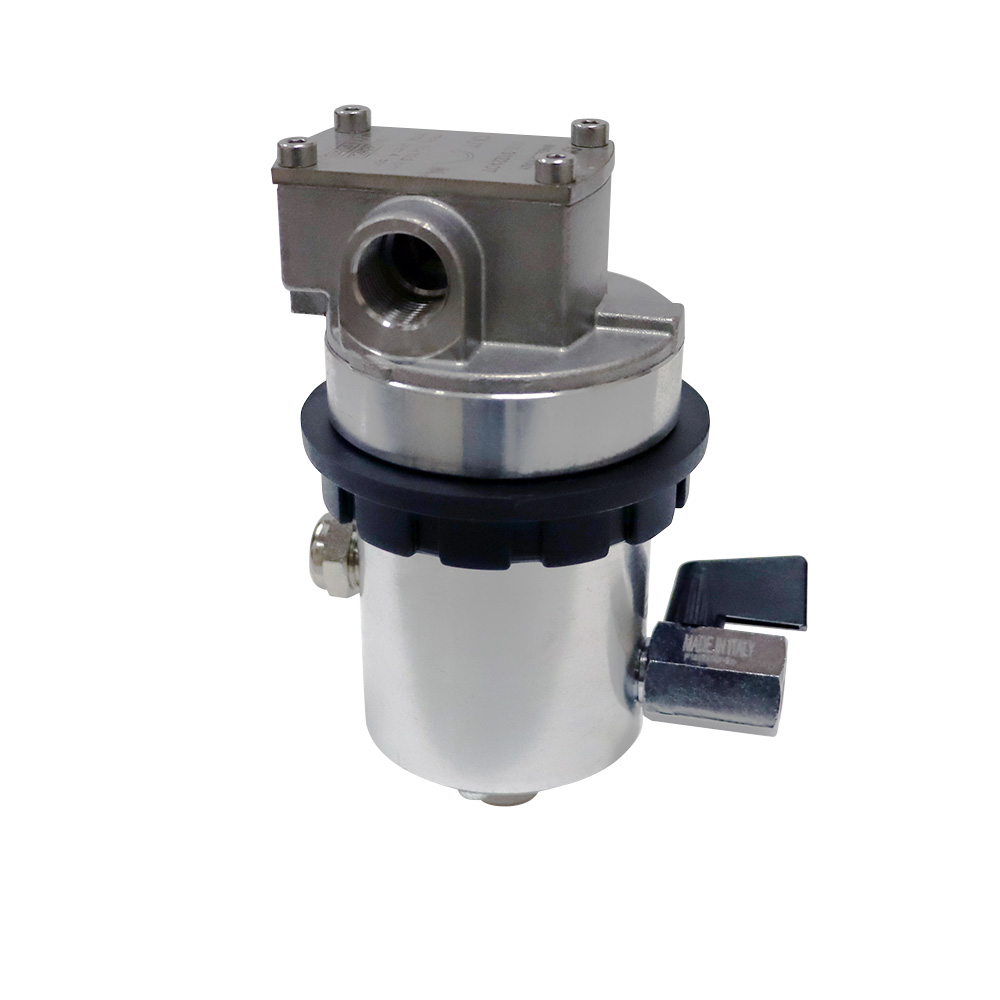

Air Operated Rotary Pump

Model: DO31221

  • Air operated rotary pump
  • Aluminium motor, stainless steel casing, viton gaskets, and PTFE gears
  • ¼" ball valve included
  • Suitable for a variety of chemicals
  • Suction head up to 2 metres
  • Check with STM for chemical compatibility

Specifications

Specifications

MODEL

DO31221

Application

Chemicals

Working Pressure

25 - 100psi

Max. Free Flow Rate

10 L/min

Air Inlet Connection

1/4" BSP Female

Fluid inlet/outlet Barbtail Size

1/2"
